21st Century Podiatry

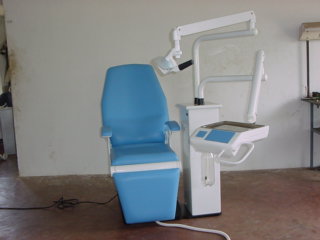

Integrated Podiatry Workstations



Chair, light, drills, suction, 3 way syringe, tray and operators chair all included



To ORDER ring (+44)  01536 520003

MOBILE 07709 602000 or to e-mail click here



Dentists click here

levitaLevita Chi  £2999.00

Colour

        chairFusion £2699.00

purchase online below

colour

More pictures below

The colours of the chairs are : Maroon, Light Blue, Dark Blue, Light Violet, Light
Green, Beige, Dark Grey and Reddish Maroon.

  • You can order extras or remove accessories as you wish.
  • Side unit without chair available see below.
  • Electrical operation for seat and back, electric leg raise, split leg or all in one.
  • Preset chair settings optional (e-mail height of chair to rise to etc)
  • Actuator-controlled movement
  • Chair mounted delivery system with instrument tray
  • Operating light with double intensity focus and dichoric-coated parabolic imported reflector
  • Doctor's stool with gas spring
  • Suction handpiece.
  • 3 Way syringe-(water, air or  water and air) holds 2 litres
  • Micromotor drill 20000 RPM foot switch and on/off button.
  • Compressor built in.
  • If you want extra drills or other accessories please enquire on  +44 (0) 1536 520003 or e-mail

To see the chairs dimensions CLICK HERE Word 2000 only.

THIS IS AN INTRODUCTORY OFFER AND WILL NOT LAST SO HURRY !

Prices include VAT and Delivery, If you do not pay VAT

in areas like the Channel islands etc the price is still the same

as this is an INTRODUCTORY OFFER & we are covering the VAT

Delivery usually takes up to 8 weeks from ordering.

All chairs will have concertina bottoms as the Y2K & Topaz below.

  Shipping can be arranged worldwide



Price of side unit, light and tray only (no chair or drills). £559.00

Price of  side unit, light, tray and one drill (no chair) £699.00

Price of chair on its own £1499.00
Click here to convert to other currencies

For measurements of the chair, max heights etc ring 01536 520003

and we will fax or e-mail through the details.

chair

chair

chair

chair

chair

chair

tray

Picture showing a tray with suction, 2 micromotors and a 3-way syringe.

Two control panels for each drill with speed, on/off switch and reverse and forward direction,

switch in between panels is for the foot switch control and the switch on the right is the light on/off

high intensity and low intensity.

Chair : The seat up/down movement, backrest up/down movement, and
the leg rest up/down movements are controlled using linear
actuators working on 24 volts.  The above movements are controlled
using a foot operated switch.
Instrument tray and light are mounted to the chair and it travels
up and down  with the chair.
Light : It has a dichoric coated multifacted glass reflector and a
12 volts halogen bulb.  The light has an intensity of 20000 lux
when in bright mode and 14000 lux on dim mode.
Instrument tray : Is made of fibre reinforced plastic and has the
following instruments attached to it.
    1.  Micromotor with straight hand piece : RPM on No load -
35000
                                              Weight - 200 grams
                                              Max. current drawn -
3 Amps
                                              Voltage - 15 to 32
volts
    2.  Three way syringe  :  Maximum pressure of air - 50 psi
                              Maximum pressure of water - 50 psi
          (This pressure can be regulated using the air pressure
regulator built into the system)

Compressor  :  Voltage  -  220 Volts AC
                Motor HP - 1 HP
                Air delivery - 95 litres per minute on no load
                Motor speed - 1460 RPM
                Reservoir tank capcity - 25 litres
                Head mounting - spring suspended
                Protection - 1. Mechanical air pressure safety
valve
                             2. Electrical pressure switch.
The compressor can be kept upto 5 metres away from the chair.




TEL  01536  520003

MOBILE NUMBER               07709 602000

CLICK HERE TO e-mail








CE mark pending.
